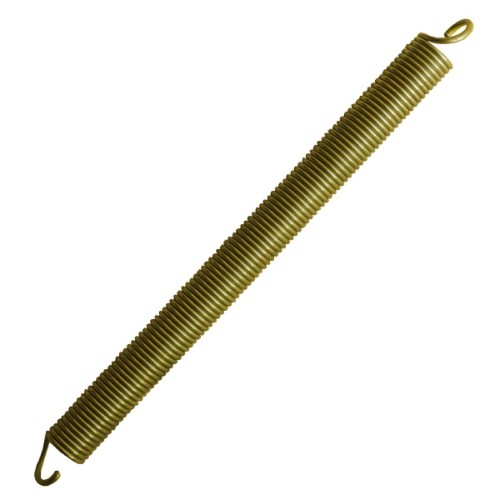

Henderson Dolphin YELLOW Garage Door Spring
- When replacing garage springs, it is recommended to replace both springs at the same time, to ensure the spring tension and door remain balanced.
- Henderson Dolphin YELLOW Spring used on small, single garage doors. The original Henderson part number is 028570
- Henderson Dolphin springs were all manufactured to the same dimensions, but using a different grade of metal to achieve the difference in spring strength. Usually the Dolphin springs were identified by their colour.
- Suits the following door styles; Classic 7066/7070, Bergen tracked 7066/7070, Chevron tracked 7066/7070
- Wire Diameter 5.5mm
- Number of Coils 94
- Overall Diameter 37mm
- Length Excluding Hooks 525mm
| Spring Specification | |
| Door Width | Single |
| Spring Diameter | 38mm |
| Spring Wire Diameter | 5.5mm |
| No. of Coils | 94 |
| Spring Length | 525mm |
£29.50
Ex Tax:
£24.58
